Characteristics:
Material composition:
Cu (91,3%), Sn (8,5%), P (0,2%)

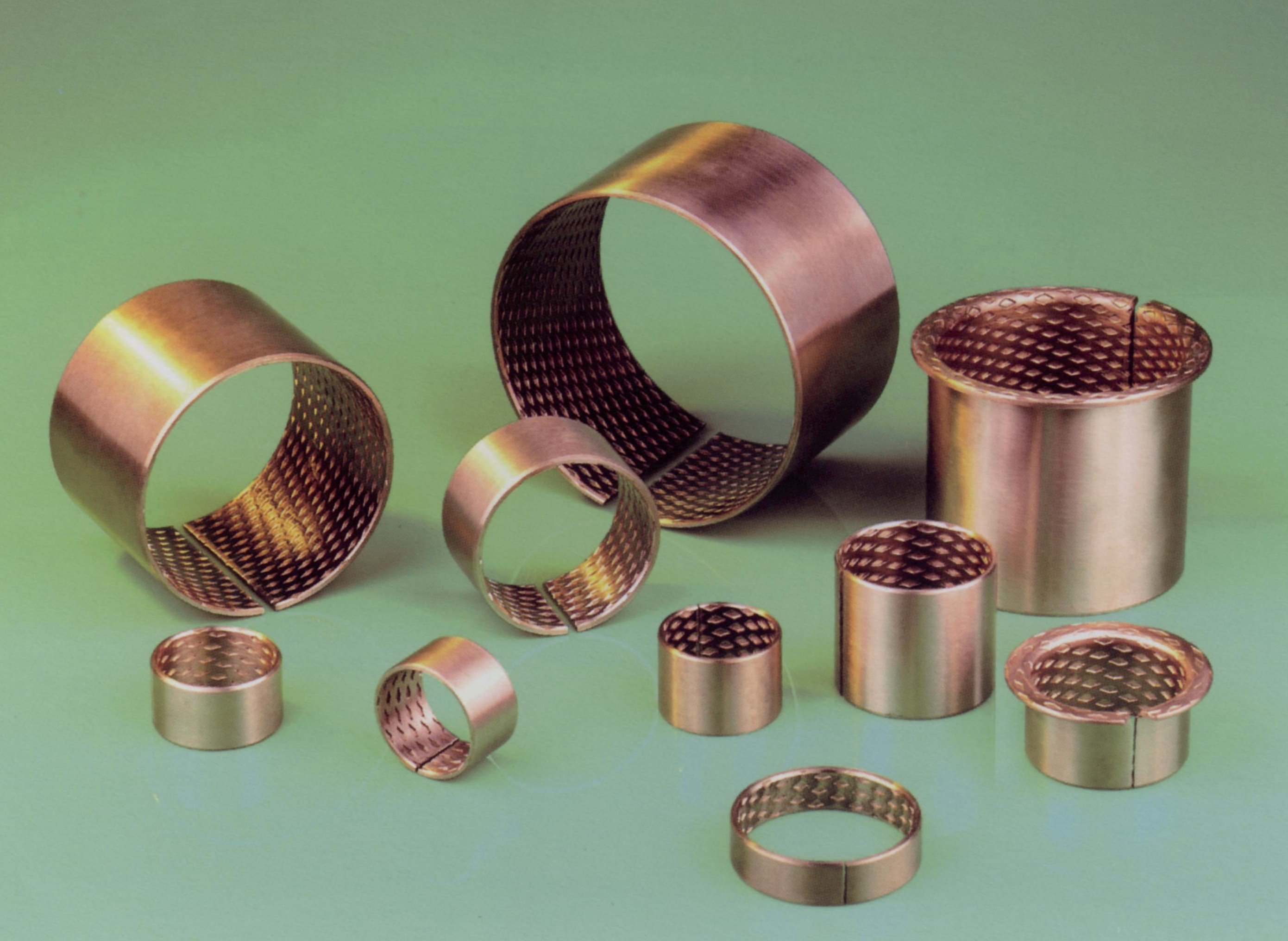

Diamond shape lubrication pockets
Diamond edge length:
with Di < 22mm : 1,9mm
with Di > 22mm : 2,4mm
Diamond depth
with Di < 22mm : 0,4 ± 0,2
with Di > 22mm : 0,6 ± 0,2 |
Characteristics:
Material composition:
Cu (91,3%), Sn (8,5%), P (0,2%)

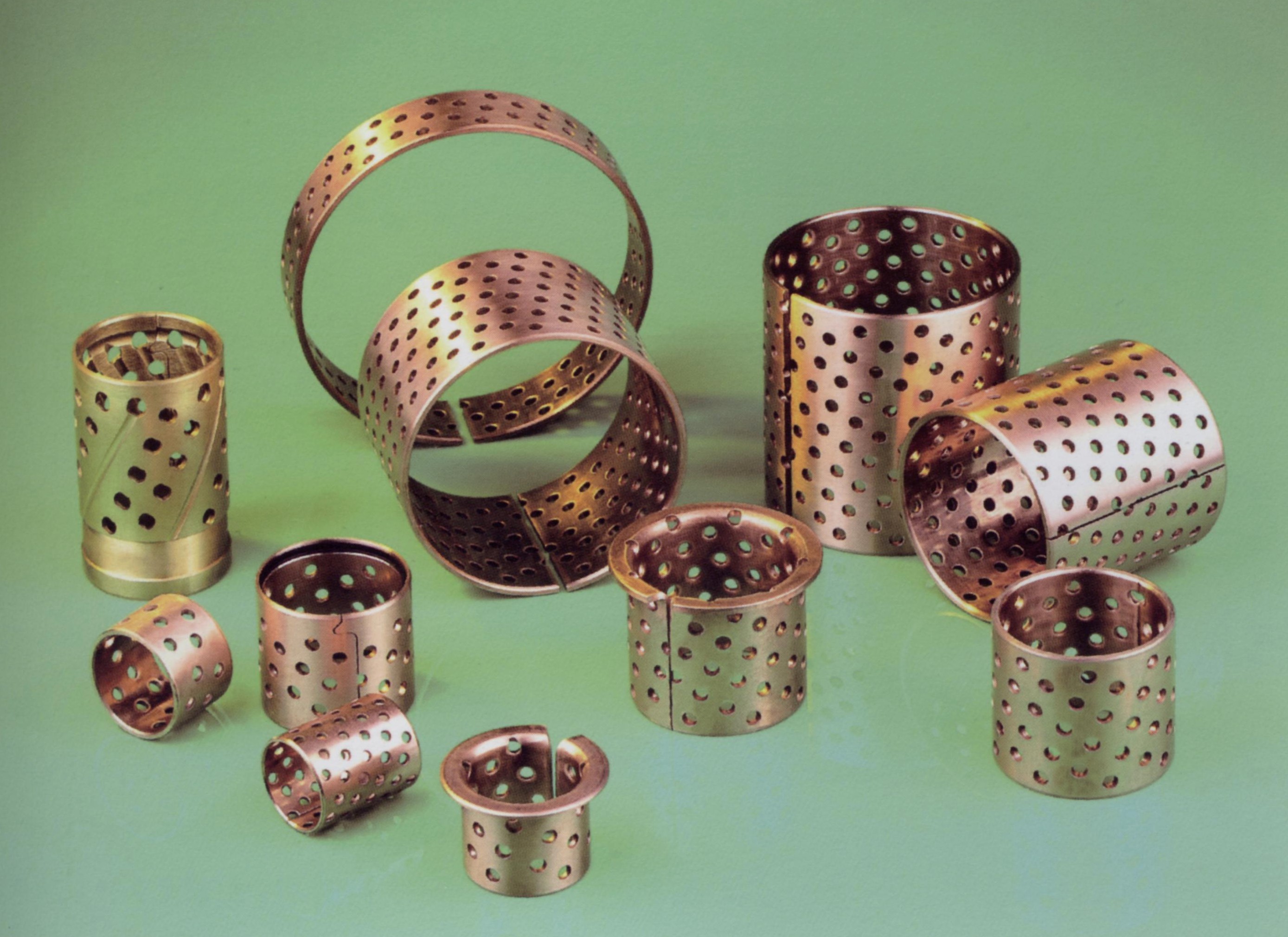

Lubrication holes:
Hole diameter:
with Di < 25mm : 3mm
with Di > 25mm : 4mm
|
